4G Waterproof Wired Vehicle GPS Tracker

The 4G Waterproof Wired Vehicle GPS Tracker is designed for reliable, continuous monitoring of cars, motorcycles, trucks, commercial vehicles and fleet assets. It connects directly to the vehicle’s power supply and transmits real-time location data through 4G LTE or compatible 2G mobile networks.

The compact, water-resistant enclosure makes the tracker suitable for concealed installation in vehicles that operate in rain, dust, vibration and other demanding conditions. Users can monitor vehicle locations, ignition status, historical routes and alarm events through an Android app, iOS app or web-based tracking platform.

Real-Time Vehicle Location Tracking

The device combines GPS and BeiDou satellite positioning with LBS and assisted positioning. When satellite signals are available, it provides accurate outdoor location information, including vehicle position, speed, direction and positioning time.

Location data is transmitted to the tracking platform through the cellular network. The reporting interval can be configured according to different fleet-management, security and power-consumption requirements.

Waterproof Design for Outdoor Vehicles

The tracker uses a sealed, water-resistant housing to protect its internal electronics from rain, splashes and dust. It is suitable for motorcycles, electric bicycles, trucks, construction vehicles and other equipment where the installation environment may be exposed to moisture.

For dependable operation, the wiring connections should also be insulated and protected against water after installation.

Hardwired Power Supply

Unlike rechargeable portable GPS trackers, this model connects directly to the vehicle battery. The wired power supply supports continuous vehicle monitoring without frequent manual charging.

The compact enclosure can be installed in a concealed position, making the device difficult to discover or remove. The input voltage and wiring method should be confirmed before installation.

ACC Ignition Detection

The ACC wire detects whether the vehicle ignition is on or off. Fleet managers can check ignition status, driving time, parking duration and vehicle usage through the management platform.

ACC data can also support vehicle utilization reports, unauthorized-use detection and more accurate trip records.

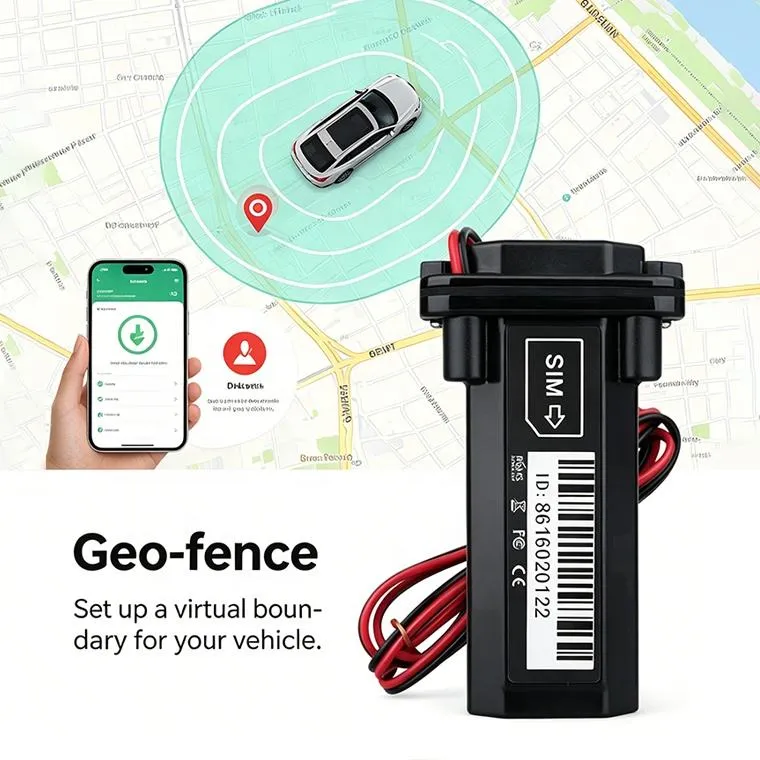

Geo-Fence Alerts

Users can create virtual geographic boundaries around offices, warehouses, construction sites, delivery areas or approved operating zones.

When a vehicle enters or leaves the configured area, the platform can generate an alert. This function is useful for fleet supervision, rental vehicle management and unauthorized movement detection.

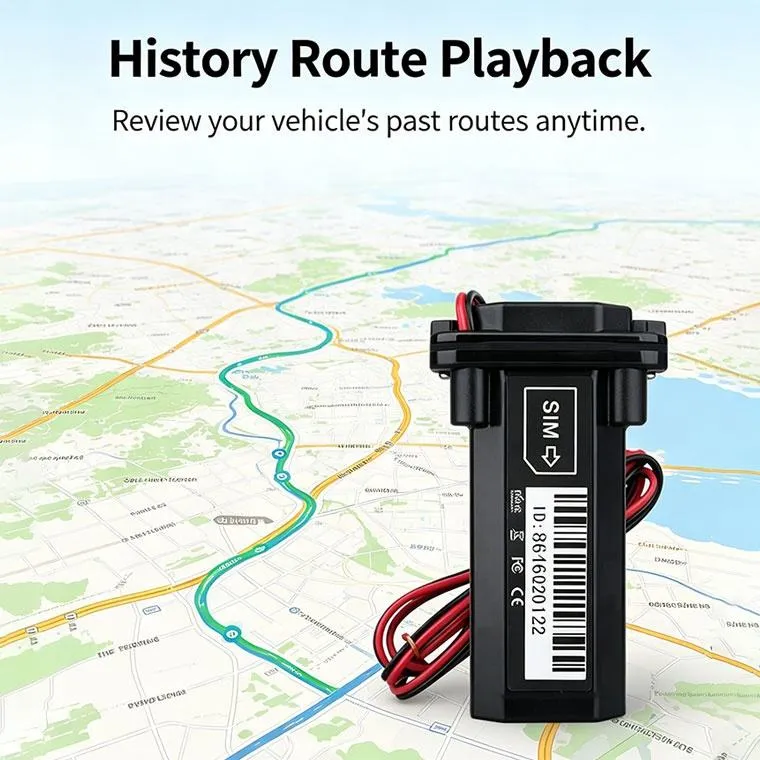

Historical Route Playback

The mobile app and web platform store historical positioning records. Authorized users can review previous travel routes, stop locations, driving times and movement history.

Route playback helps businesses analyze vehicle usage, confirm delivery journeys, investigate abnormal movement and improve fleet scheduling.

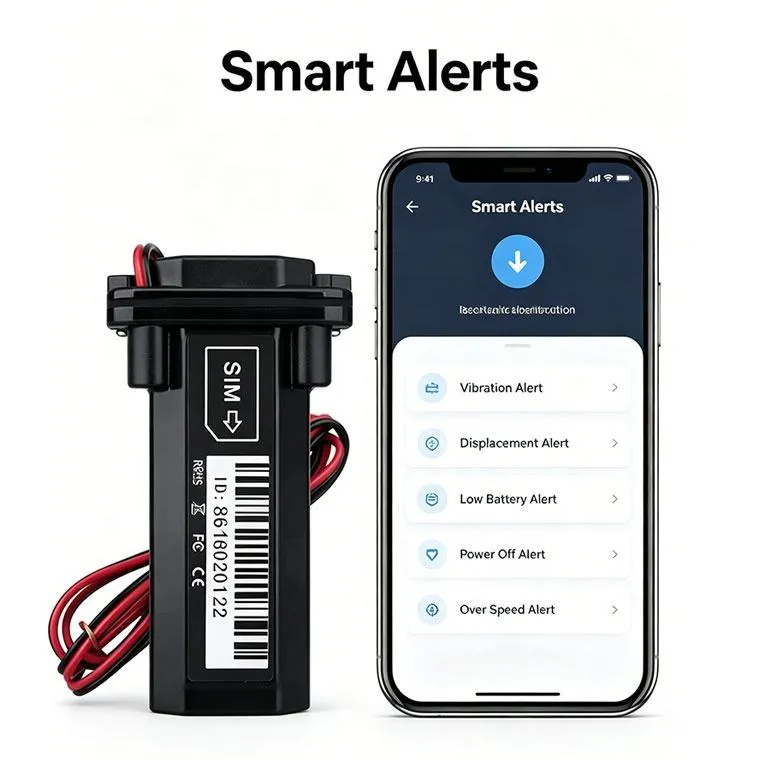

Multiple Vehicle Alarms

Depending on the configured firmware and platform, the tracker can support several vehicle security and management alarms:

Geo-fence entry alert

Geo-fence exit alert

Overspeed alert

External power disconnection alert

Vibration alert

ACC ignition alert

Abnormal movement alert

Offline device alert

Alarm records can be viewed through the application or web management platform.

Mobile App and Web Tracking Platform

Users can manage vehicles through Android and iOS mobile applications or a computer-based web platform. The system can display vehicle names, device numbers, latest locations, positioning times, speeds, ACC status and alarm records.

The platform supports individual vehicle monitoring and centralized fleet management, making it suitable for both personal vehicles and large commercial fleets.

Vehicle and Fleet Applications

This waterproof wired GPS tracker can be used for:

Private car security

Motorcycle anti-theft monitoring

Truck location tracking

Logistics fleet management

Rental vehicle monitoring

Taxi fleet management

Delivery vehicle tracking

Construction machinery monitoring

School bus management

Commercial vehicle dispatching

Outdoor equipment tracking

Installation Instructions

Install the tracker in a concealed position with the GPS antenna side facing upward. Avoid mounting it directly beneath thick metal panels because metal can weaken satellite signals.

Connect the positive wire to the appropriate vehicle power supply, connect the negative wire securely to ground and connect the ACC wire to the vehicle ignition signal. Wiring work should be completed by a qualified installer.

After installation, activate the SIM card, configure the APN and server information, add the device ID to the tracking platform and test the GPS location, ACC status and alarm functions.

OEM and ODM Customization

Shenzhen Jinshengchang Technology Co., Ltd. provides OEM and ODM services for vehicle GPS tracking products. Customization options can include:

Custom product logo

Custom packaging

Firmware customization

Communication protocol integration

Server address configuration

Custom startup settings

Multiple interface languages

Android and iOS app customization

Web tracking platform customization

API integration

Private server deployment

The device can be integrated with an existing fleet management system or supplied together with a customized tracking platform.

Why Choose This Waterproof Wired GPS Tracker?

The product combines continuous vehicle power, cellular communication, satellite positioning and remote platform management in a compact enclosure. Its waterproof design makes it suitable for demanding vehicle environments, while ACC detection and configurable alarms support practical fleet supervision and vehicle security.

It is a suitable choice for GPS distributors, fleet solution providers, system integrators, vehicle manufacturers and businesses requiring customized vehicle tracking hardware and software.
